Update (or Redraw?) Matplotlib Bar Chart Using Y Value From Onclick

I have a matplotlib bar chart that uses yerr to simulate a box plot. I would like to click on this bar chart get the y value for this click draw a red horizontal line at this y va

Solution 1:

You want to recalculate the ttests using the new y value inside onpick. Then, you can recalculate the colors in the same way as you did before. You can then loop over the bars created with ax.bar (here I save them as self.bars for easy access), and use bar.set_facecolor with the newly calculated color.

I also added a try, except construct to change the yvalue of the line if you click a second time, rather than create a new line.

import pandas as pd
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
from scipy.stats import ttest_1samp

np.random.seed(12345)

df = pd.DataFrame([np.random.normal(32000,200000,3650),
                   np.random.normal(43000,100000,3650),
                   np.random.normal(43500,140000,3650),
                   np.random.normal(48000,70000,3650)],
                  index=[1992,1993,1994,1995])


classPointPicker(object):
    def__init__(self, df, y=0):

        # Store reference to the dataframe for access later
        self.df = df

        # moments for bar chart "box plot"
        mus = df.mean(axis=1)
        sigmas = df.std(axis=1)
        obs = df.count(axis=1)
        ses = sigmas / np.sqrt(obs - 1)
        err = 1.96 * ses
        Nvars = len(df)

        # map t-ststistics to colors
        ttests = ttest_1samp(df.transpose(), y)
        RdBus = plt.get_cmap('RdBu')
        colors = RdBus(1 / (1 + np.exp(ttests.statistic)))

        self.fig = plt.figure()
        self.ax = self.fig.add_subplot(111)

        # bar chart "box plot". Store reference to the bars here for access later
        self.bars = self.ax.bar(
                list(range(Nvars)), mus, yerr=ses, capsize=20, picker=5, color=colors)
        plt.xticks(list(range(Nvars)), df.index)
        plt.tick_params(top='off', bottom='off', left='off', right='off', labelleft='on', labelbottom='on')
        plt.gca().get_yaxis().set_major_formatter(matplotlib.ticker.FuncFormatter(lambda x, p: format(int(x), ',')))
        plt.title('Random Data for 1992 to 1995')

        self.fig.canvas.mpl_connect('pick_event', self.onpick)
        self.fig.canvas.mpl_connect('key_press_event', self.onpress)

    defonpress(self, event):
        """define some key press events"""if event.key.lower() == 'q':
            sys.exit()

    defonpick(self,event):
        x = event.mouseevent.xdata
        y = event.mouseevent.ydata

        # If a line already exists, just update its y value, else create a horizontal linetry:
            self.line.set_ydata(y)
        except:
            self.line = self.ax.axhline(y=y, color='red')

        # Recalculate the ttest
        newttests = ttest_1samp(df.transpose(), y)
        RdBus = plt.get_cmap('RdBu')
        # Recalculate the colors
        newcolors = RdBus(1 / (1 + np.exp(newttests.statistic)))

        # Loop over bars and update their colorsfor bar, col inzip(self.bars, newcolors):
            bar.set_facecolor(col)

        self.fig.canvas.draw()

if __name__ == '__main__':

    #plt.ion()
    p = PointPicker(df, y=32000)
    plt.show()

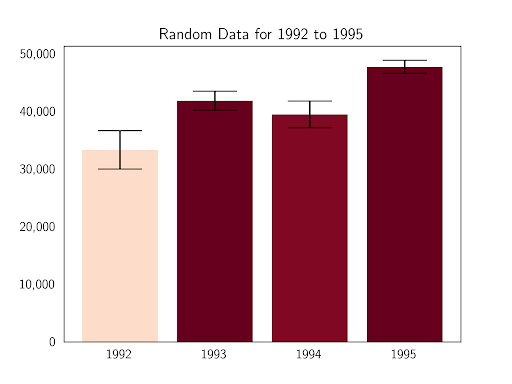

Here's some example output:
